- Ergonomska komanda, ki se upravlja z obeh strani.
- Optimizirana hidravlika, ki prihrani naprezanje.
- Robustni materiali in obdelava.
- Brez vzdrževanja, saj so spoji trajno namazani.
- Poseben spustni ventil za posebej natančno spuščanje.
AM 22

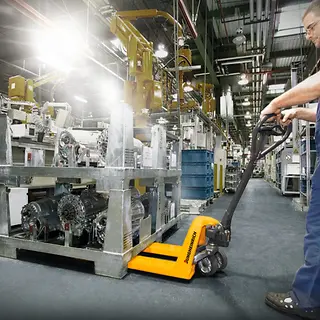

Robustni in zanesljivi ročni paletni vozički AM 22 so klasični vozički znamke Jungheinrich. Zlasti so primerni za vsakodnevno prevažanje blaga na kratkih razdaljah. Upravljate jih z ergonomsko komando – na levi ali desni strani in samo z eno roko. Optimizirana hidravlika v povezavi s kromanimi kolesnimi pušami in zglobi omogoča lahkotno premikanje blaga. Zaradi boljše ergonomije med delom se poveča še varnost v podjetju. Razpoložljivost zagotavljajo trajno namazani spoji in črpalna hidravlika, ki ne zahteva vzdrževanja in je opremljena s posebnim spustnim ventilom. Zaradi odpornega jekla in privarjenega nosilca ročice boste voziček AM 22 lahko še dolgo uporabljali. Za varno in preprosto prevažanje blaga.
Bistvene značilnosti

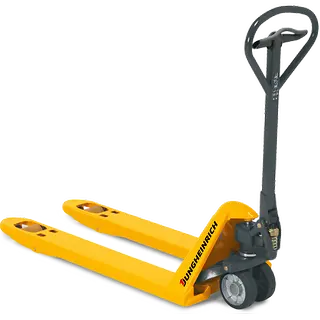

![AM22_[MAM-10245].webp](https://media-live2.prod.scw.jungheinrichcloud.com/resource/image/1509342/portrait_ratio1x1/320/320/e3c53e05ef2e8cf1f69b9913da50aa05/9827CF8B80D20A9CE49881B740B9654D/am22-mam-10245-webp.webp)
Pregled modelov
| Model | Največja nosilnost | Največja dvižna višina | Hitrost vožnje | Celotna dolžina |
| AM 22, 520x600, N-GN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x1054, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, N-GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, N/GN, NH | 2.200 kg | 122 mm | - | 1.523 mm |
| AM 22, 520x600, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, C-GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x600, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.165 mm |
| AM 22, 520x902, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.320 mm |
| AM 22, 520x1054, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.424 mm |
| AM 22, 520x1150, C-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.520 mm |
| AM 22, 520x1207, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.577 mm |
| AM 22, 520x600, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x902, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x600, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x950, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, N-BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x600, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, C-BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.520 mm |
| AM 22, 520x1207, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x600, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, C-BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1360, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.733 mm |
| AM 22, 520x1600, C/BV, NH | 1.500 kg | 122 mm | 0 km/h | 1.973 mm |
| AM 22, 520x1900, C/BV, NH | 1.000 kg | 122 mm | 0 km/h | 2.273 mm |
| AM 22, 520x2400, C/BV, NH | 500 kg | 122 mm | 0 km/h | 2.773 mm |
| AM 22, 520x600, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, V-BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 2200, 680x1207, N-GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, N-GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, N/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x902, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, C/GN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, C/GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, V-GV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, N/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, C/BN, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x902, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x1150, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1360, C/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.733 mm |
| AM 22, 680x1600, C/BV, NH | 1.700 kg | 122 mm | 0 km/h | 1.973 mm |
| AM 22, 680x1900, C/BV, NH | 1.200 kg | 122 mm | 0 km/h | 2.773 mm |
| AM 22, 680x600, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, V/BV, NH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x600, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 220, 520x600, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x600, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x600, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x950, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x600, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x600, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.520 mm |
| AM 22, 520x1207, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x600, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1360, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.733 mm |
| AM 22, 520x1600, C-BV, SH | 1.500 kg | 122 mm | 0 km/h | 1.973 mm |
| AM 220, 520x1900, C-BV, SH | 1.000 kg | 122 mm | 0 km/h | 2.273 mm |
| AM 22, 520x2400, C-BV, SH | 500 kg | 122 mm | 0 km/h | 2.773 mm |
| AM 22, 520x600, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 520x902, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 520x950, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 520x1054, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 520x1150, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 520x1207, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, N-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x1150, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, C-GN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 220, 680x950, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, C-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x950, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, V-GV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x950, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, N-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, C-BN, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x600, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1360, C-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.733 mm |
| AM 22, 680x1600, C-BV, SH | 1.700 kg | 122 mm | 0 km/h | 1.973 mm |
| AM 22, 680x1900, C-BV, SH | 1.200 kg | 122 mm | 0 km/h | 2.273 mm |
| AM 22, 680x600, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.168 mm |
| AM 22, 680x902, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.275 mm |
| AM 22, 680x950, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.323 mm |
| AM 22, 680x1054, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.427 mm |
| AM 22, 680x1150, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
| AM 22, 680x1207, V-BV, SH | 2.200 kg | 122 mm | 0 km/h | 1.523 mm |
